WZ25-30 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 6 t
Dimensions: 6.5 × 2.04 × 2.8 m
Power: 96 kW
Product Details

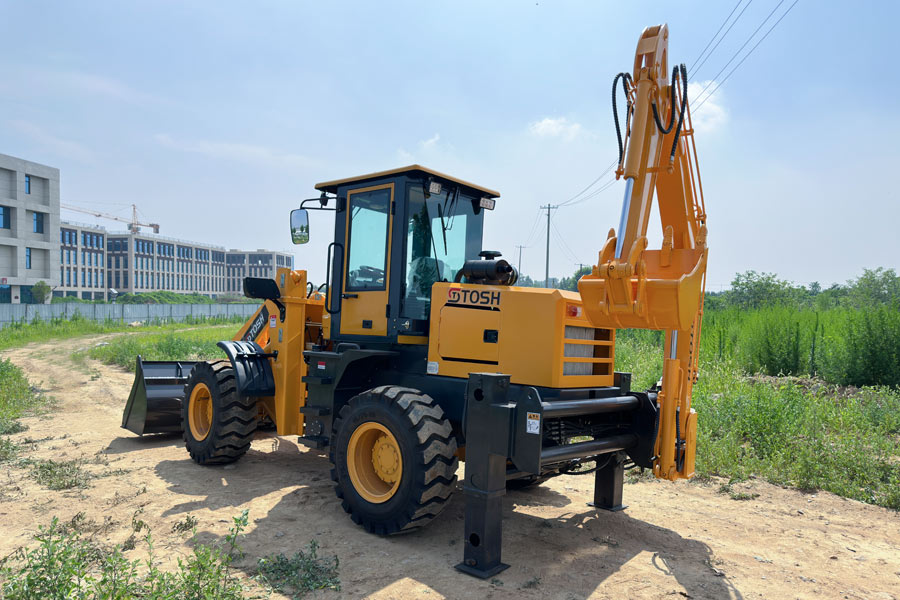

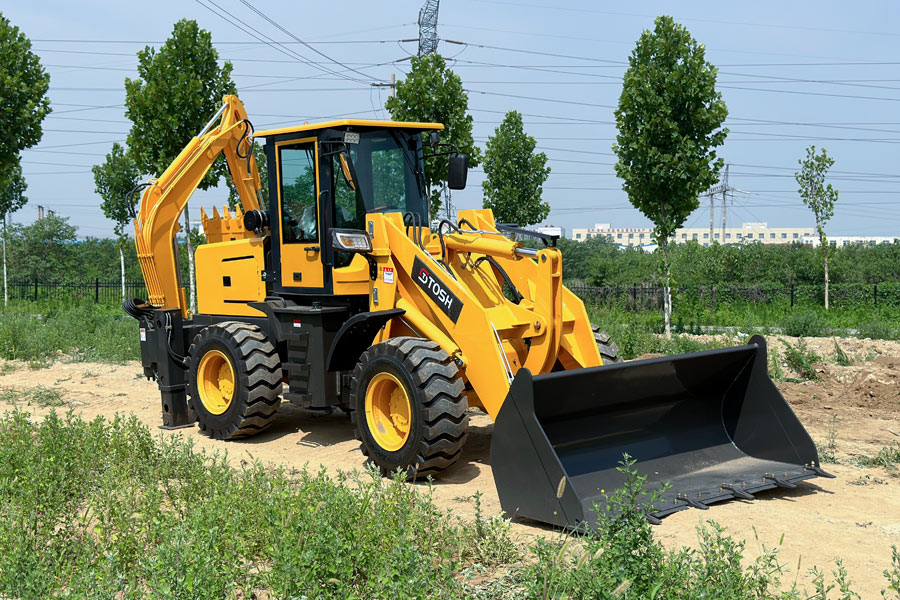

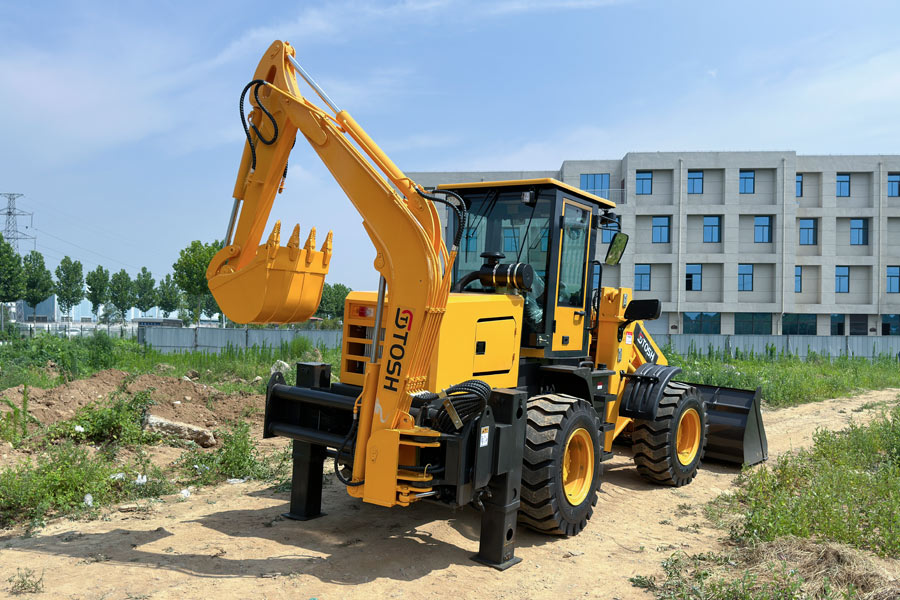

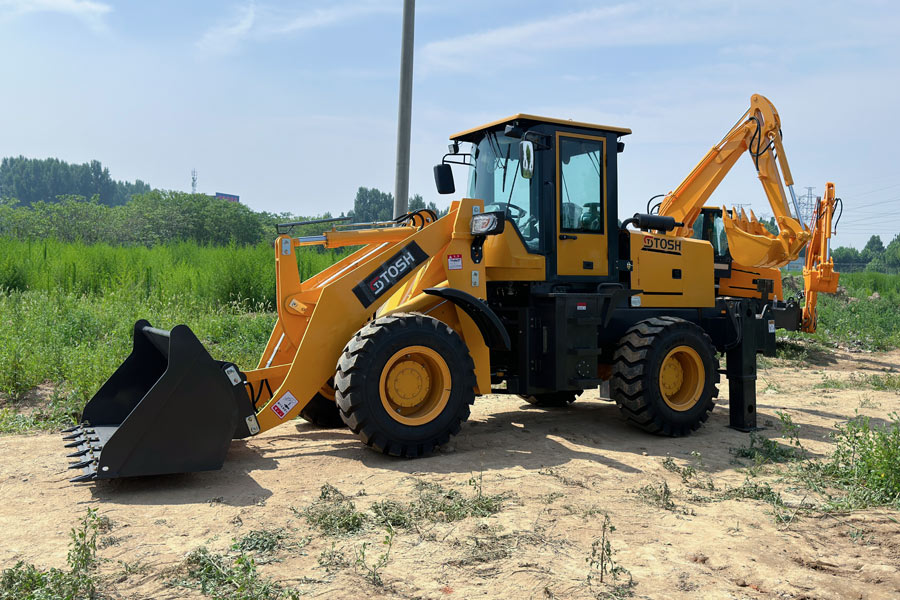

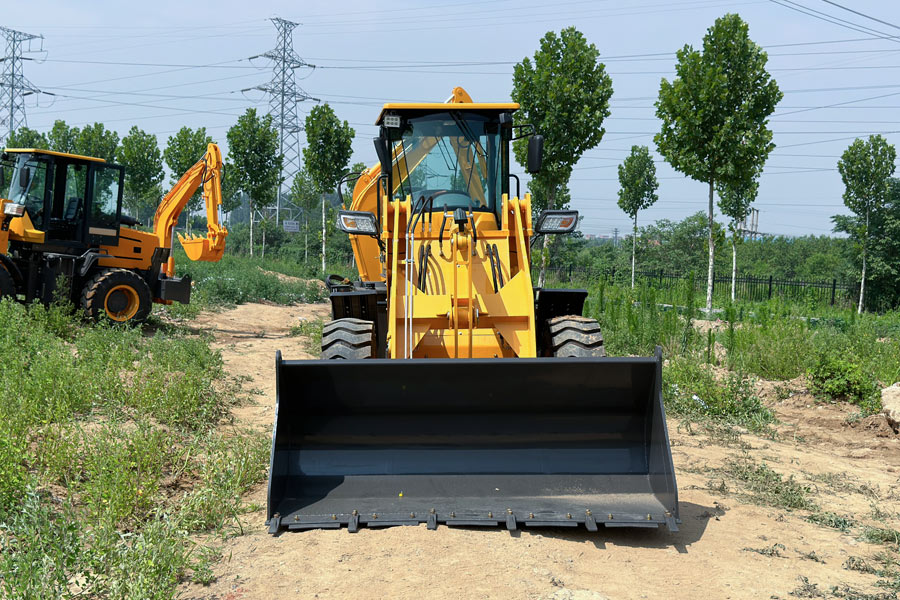

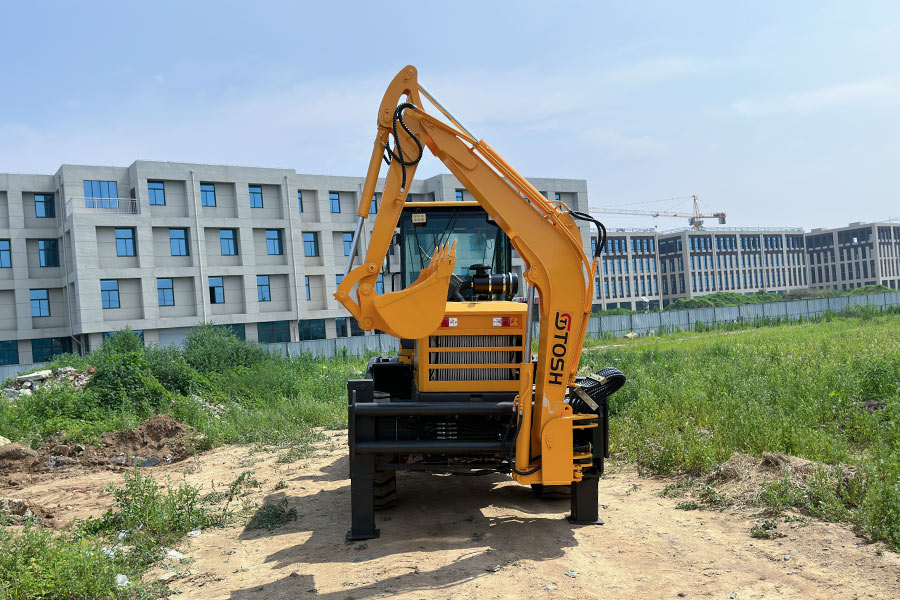

WZ25-30 6-Ton 4WD Backhoe Loader
The WZ25-30 backhoe loader combines a 3-ton front loader, 3.5 m dumping height and 2.6 m digging depth. Powered by a 96 kW turbocharged diesel engine, its 4WD drivetrain and articulated steering support material loading, trenching and municipal construction.
Technical Specifications
| Model | WZ25-30 |
| Operating Weight | 6,000 kg |
| Engine Power | 96 kW Turbo Diesel |
| Loader Rated Load | 3,000 kg |
| Loader Bucket | 1.5 m³ |
| Max. Dump Height | 3,500 mm |
| Max. Digging Depth | 2,600 mm |
| Backhoe Bucket | 0.3 m³ |
View Full Specifications▾
| Dimensions | 6,500 × 2,040 × 2,800 mm |
| Travel Speed | 30 km/h |
| Turning Radius | 4,500 mm |
| Transmission | Automatic / 2F + 2R |
| Tire Size | 16/70-20 |
| Hydraulic Pressure | 20 MPa |
| Loader Breakout Force | 42 kN |
| Backhoe Digging Force | 28 kN |
| Max. Digging Radius | 4,600 mm |
| Backhoe Swing Angle | 180° |
Equipment & Attachments
Machine Configuration: Four-cylinder turbo diesel engine, articulated hydraulic steering, large hub-reduction 4WD axles, 2F+2R automatic transmission, air brakes and a 180° backhoe swing range.
Attachment Options: Contact us to confirm compatible loader buckets, backhoe buckets and other available work attachments.
Get a WZ25-30 Backhoe Loader Quote
Request WZ25-30 pricing and FOB/CIF quotations for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. High-Capacity Front Loading: A 3-ton rated load and 1.5 m³ bucket support handling soil, sand and aggregates.
2. Powerful Diesel Drivetrain: The 96 kW turbocharged engine and hub-reduction axles support loading and earthmoving operations.
3. Combined Loading & Excavation: The rear backhoe provides 2.6 m digging depth for trench excavation alongside front-end loading work.
Applications
Road & Municipal Works: Roadside trenching, drainage excavation and backfilling.
Material Loading: Handling soil, sand and aggregates at construction sites.
Utility & Site Construction: Pipeline installation, foundation trenches and general earthmoving.
Note: Confirm final machine configuration, attachment compatibility and shipping details before ordering.
