WZ08-12 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 3.2 t
Dimensions: 4.94 × 1.665 × 2.55 m
Power: 42 kW
Product Details

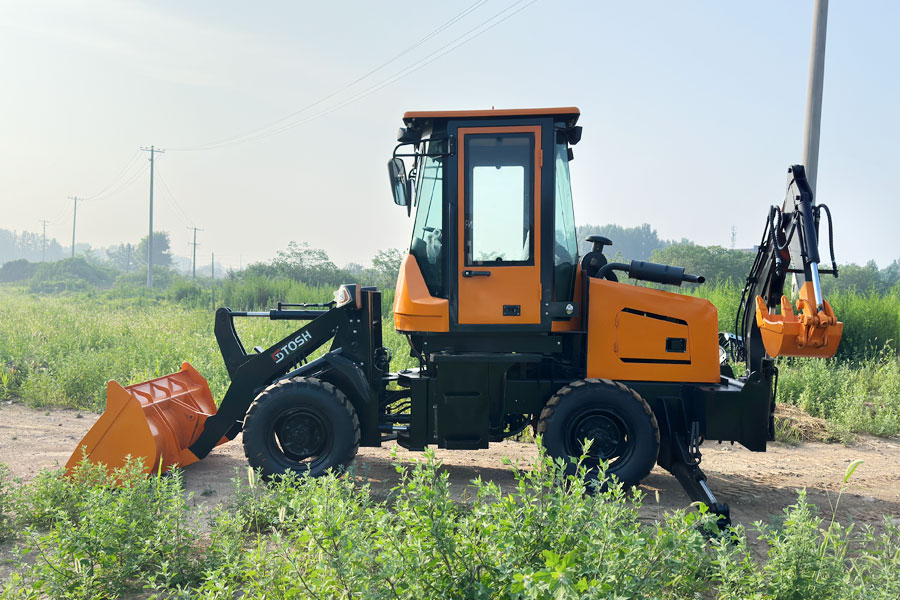

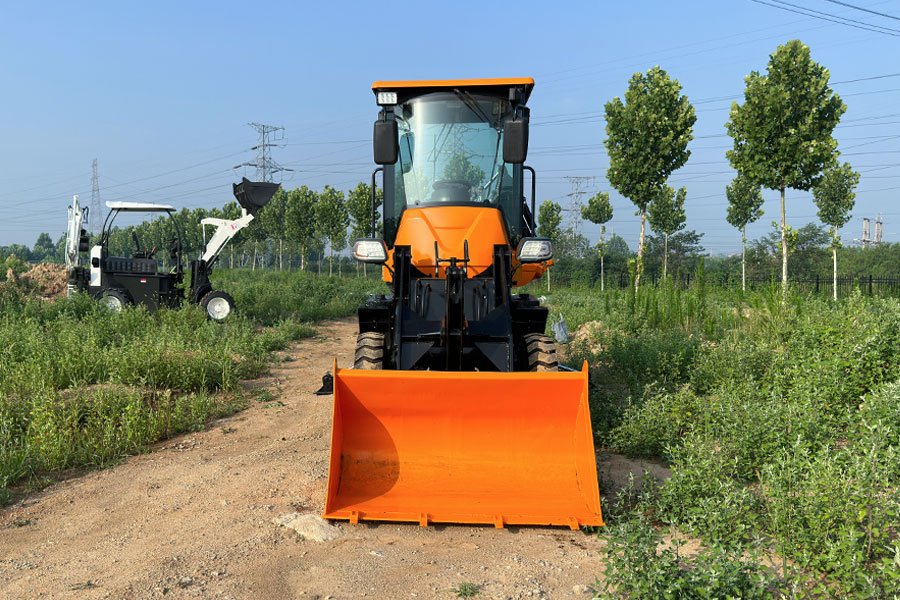

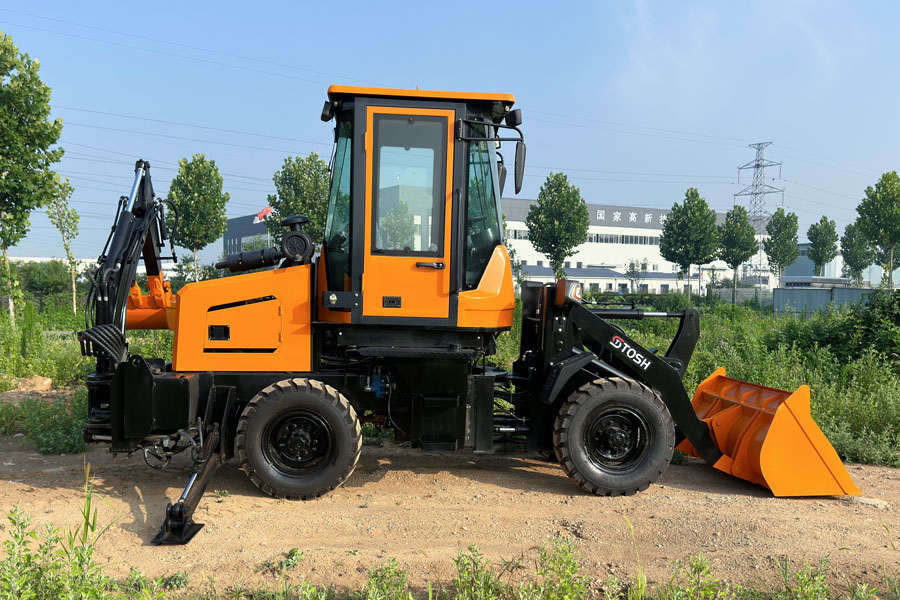

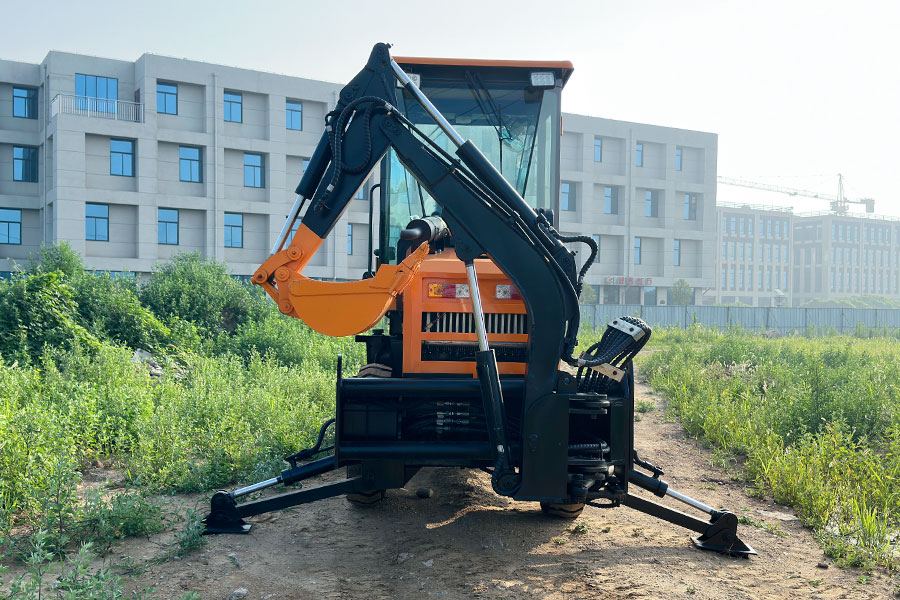

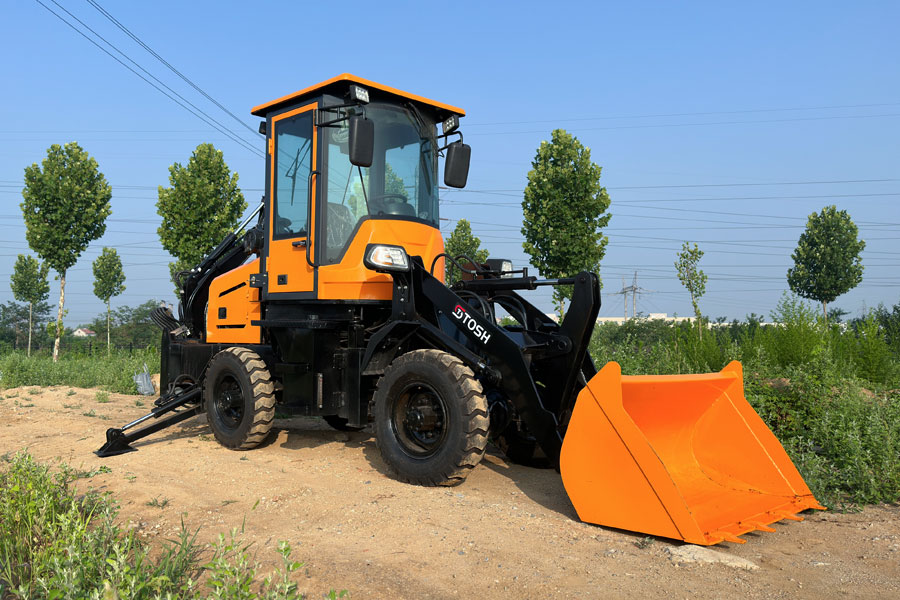

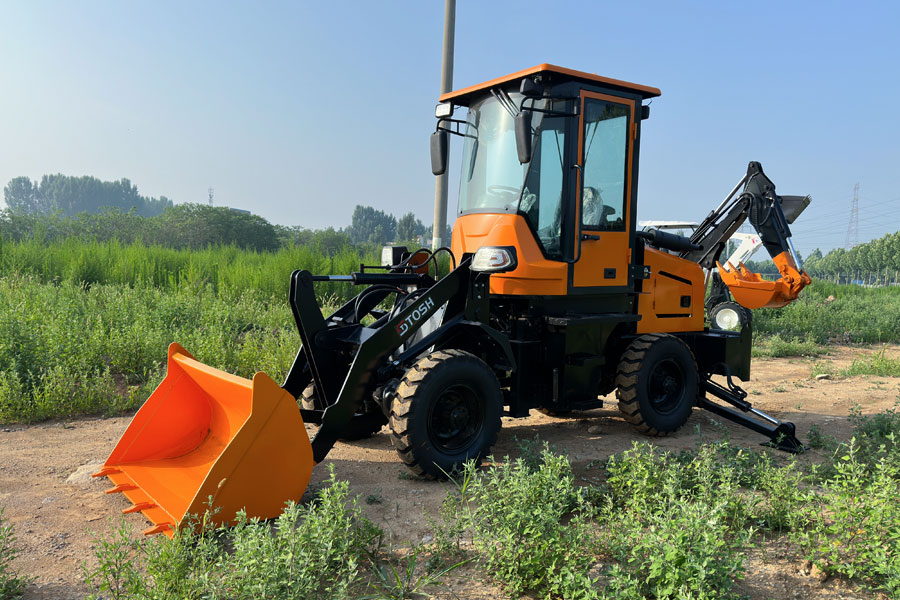

WZ08-12 3.2-Ton Compact 4WD Backhoe Loader
The WZ08-12 compact backhoe loader combines a 1-ton front loader, 1.5 m digging depth and 42 kW four-cylinder diesel engine. Its 1.665 m machine width, articulated 4WD steering and 9-second loader cycle support material handling, shallow trenching and site maintenance in confined areas.
Technical Specifications
| Model | WZ08-12 |
| Operating Weight | 3,200 kg |
| Engine Power | 42 kW Diesel |
| Drive & Steering | 4WD / Articulated Steering |
| Loader Rated Load | 1,000 kg |
| Loader Bucket | 0.5 m³ |
| Max. Digging Depth | 1,500 mm |
| Backhoe Bucket | 0.08 m³ |
View Full Specifications▾
| Dimensions | 4,940 × 1,665 × 2,550 mm |
| Travel Speed | 26 km/h |
| Turning Radius | 3,400 mm |
| Transmission | Automatic / 2F + 2R |
| Drive Axles | Isuzu Axles |
| Hydraulic Pressure | 18 MPa |
| Loader Breakout Force | 26 kN |
| Loader Cycle Time | 9 s |
| Backhoe Digging Force | 23 kN |
| Backhoe Swing Angle | 180° |
Equipment & Attachments
Machine Configuration: Four-cylinder water-cooled diesel engine, articulated hydraulic steering, 4WD with Isuzu axles, 2F+2R automatic transmission, hydraulic brakes and a 180° backhoe swing range.
Attachment Options: Contact us to confirm compatible loader buckets, backhoe buckets and other available work attachments.
Get a WZ08-12 Backhoe Loader Quote
Request WZ08-12 pricing and FOB/CIF quotations for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Compact Articulated 4WD Design: A 1.665 m machine width and 3.4 m turning radius support maneuvering in restricted work areas.
2. Fast Loader Operation: A 1-ton front loader, 0.5 m³ bucket and 9-second actuation cycle support repetitive material handling.
3. Versatile Shallow Excavation: A 1.5 m digging depth, 23 kN digging force and 180° backhoe swing support drainage and utility trenching.
Applications
Municipal Maintenance: Shallow drainage trenches, roadside repairs and backfilling.
Farm & Rural Projects: Small drainage channels, soil loading and property maintenance.
Small Construction Sites: Utility trenching, light excavation and material handling.
Note: Confirm final machine configuration, drive axle specification, attachment compatibility and shipping details before ordering.
