TE35 Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 3500Kg
Bucket capacity: 0.08cbm
Rated power: 17.1Kw
Product Details

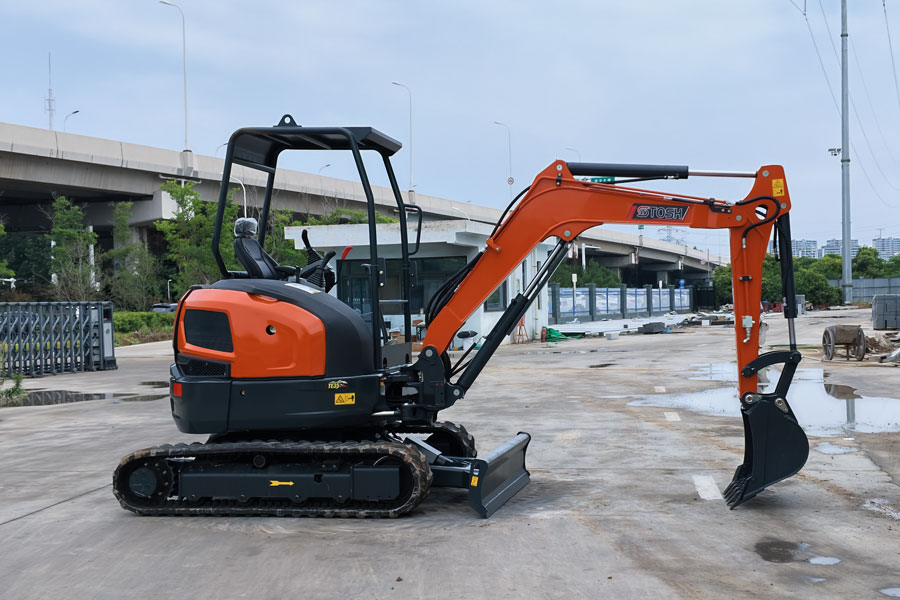

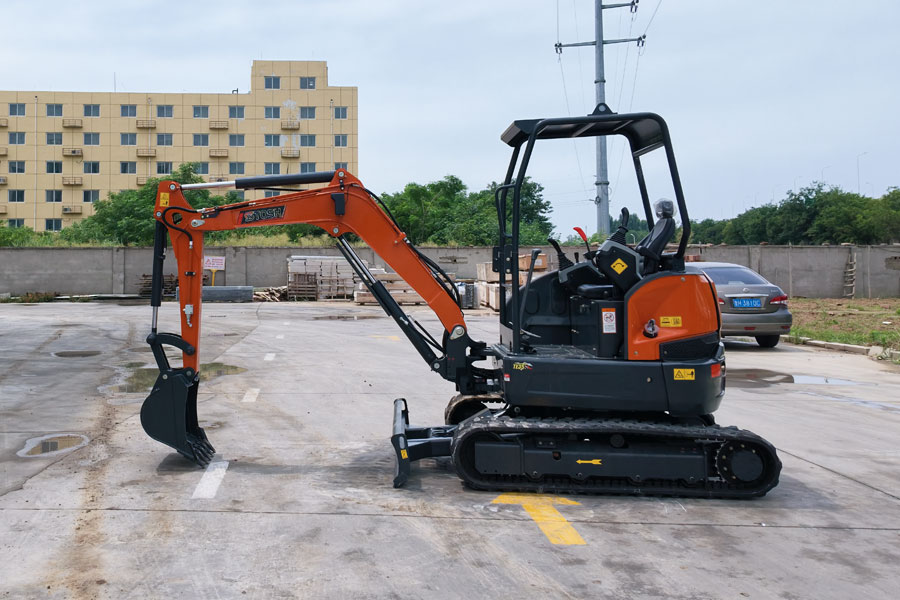

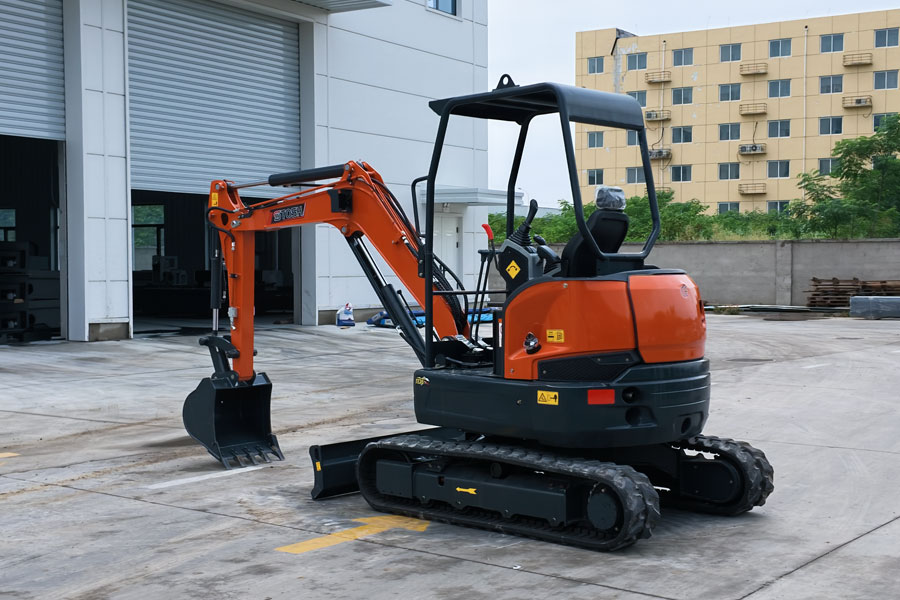

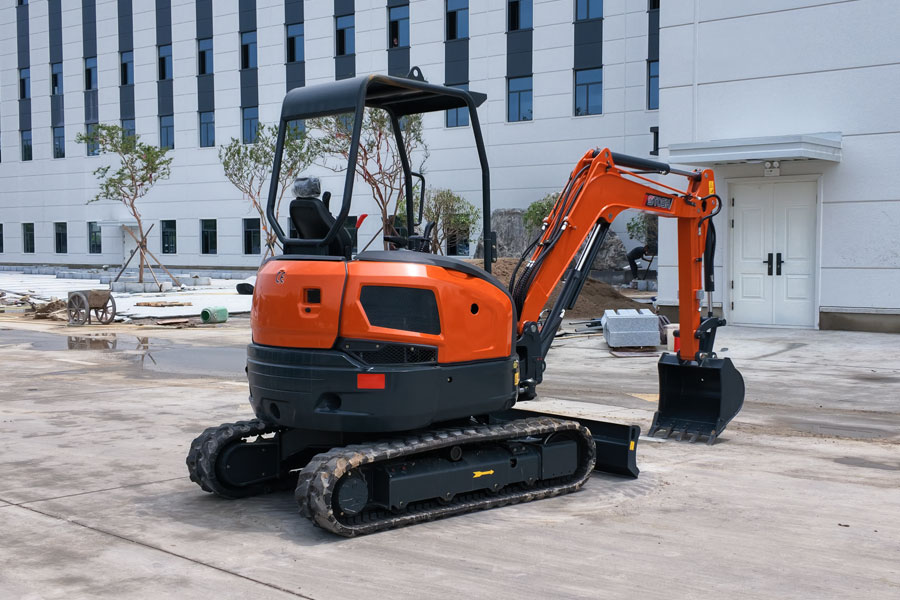

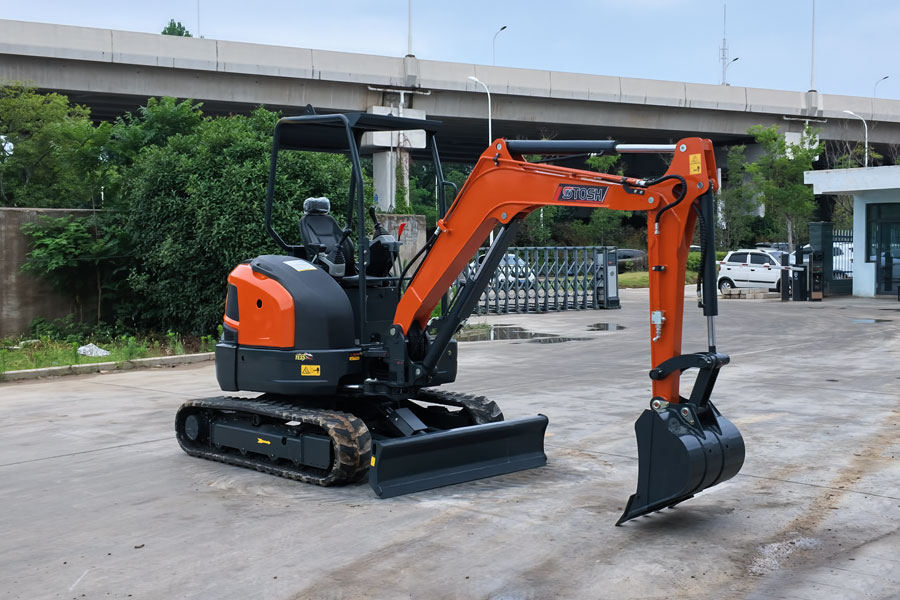

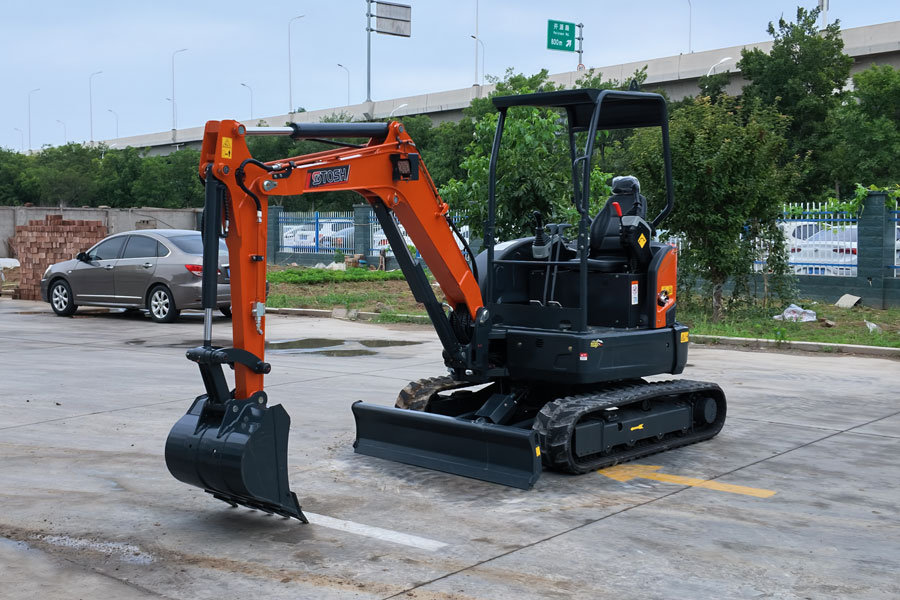

TE35 Canopy 3.5-Ton Mini Excavator
The TE35 Canopy mini excavator combines a 3,500 kg operating weight, 29.5 kN bucket digging force and 99 L/min variable piston hydraulics. Powered by a Kubota D1703 diesel engine, it offers a 2.82 m digging depth for utility trenching, earthmoving and compact construction.
Technical Specifications
| Model | TE35 Canopy |
| Operating Weight | 3,500 kg |
| Operator Station | Open Canopy |
| Chassis Width | 1,550 mm |
| Max. Digging Depth | 2,824 mm |
| Bucket Digging Force | 29.5 kN |
| Hydraulic System | 23 MPa / 99 L/min |
| Engine | Kubota D1703 Diesel |
View Full Specifications▾
| Bucket Capacity | 0.08 m³ |
| Overall Dimensions | 4,561 × 1,550 × 2,539 mm |
| Track Length | 2,077 mm |
| Ground Digging Reach | 4,960 mm |
| Max. Dumping Height | 3,200 mm |
| Travel Speed | 2.5 / 4.5 km/h |
| Arm Digging Force | 18.1 kN |
| Tail Swing Radius | 905 mm |
| Ground Pressure | 33.3 kPa |
| Boom Swing Angle | Left 49° / Right 49° |
Equipment & Engine Options
Machine Configuration: Open canopy, 300 mm rubber tracks, variable piston pump, load-sensitive hydraulic valve, two-speed piston travel motors, offset boom, 665 mm digging bucket and front dozer blade.
Engine & Attachments: Kubota D1703 three-cylinder water-cooled diesel (17.1 kW). Contact us to confirm engine emissions documentation, compatible attachments and auxiliary hydraulic specifications.
Get a TE35 Canopy Mini Excavator Quote
Request TE35 Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about compatible attachments and equipment options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and application for a tailored offer.
Key Advantages
1. Higher Digging Force: The 29.5 kN bucket force and 18.1 kN arm force support trenching and earthmoving.
2. Variable Piston Hydraulics: A 99 L/min pump and 23 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
3. Extended Working Range: A 2.82 m digging depth and 3.2 m dumping height support excavation and material handling.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Construction Sites: Foundation preparation, material loading and compact earthmoving.
Landscaping: Ground preparation, drainage channels and excavation.
Note: Confirm engine emissions documentation, canopy safety specifications, auxiliary hydraulic capacity, attachment compatibility and shipping dimensions before ordering.
