TE25T Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 2500Kg
Bucket capacity: 0.068cbm
Rated power: 15.2Kw
Product Details

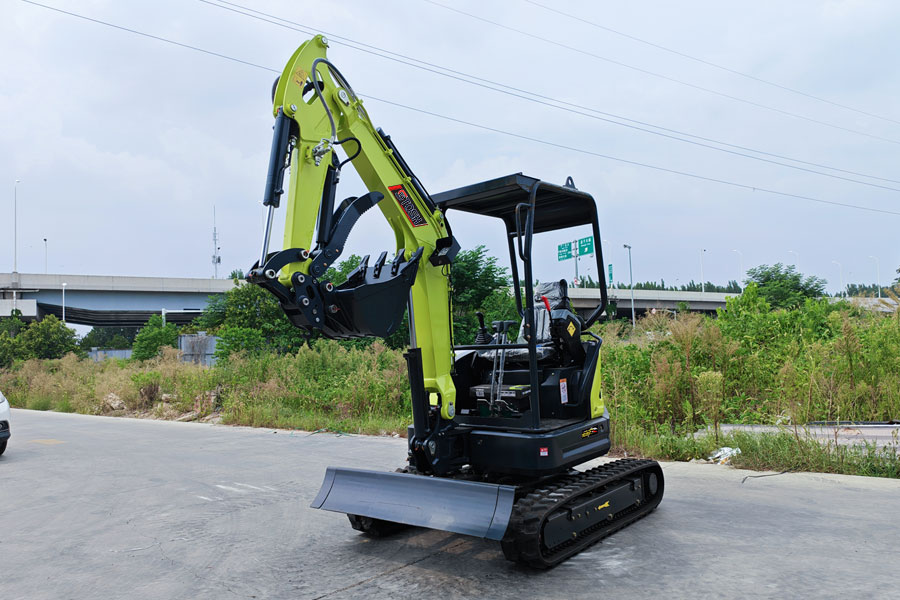

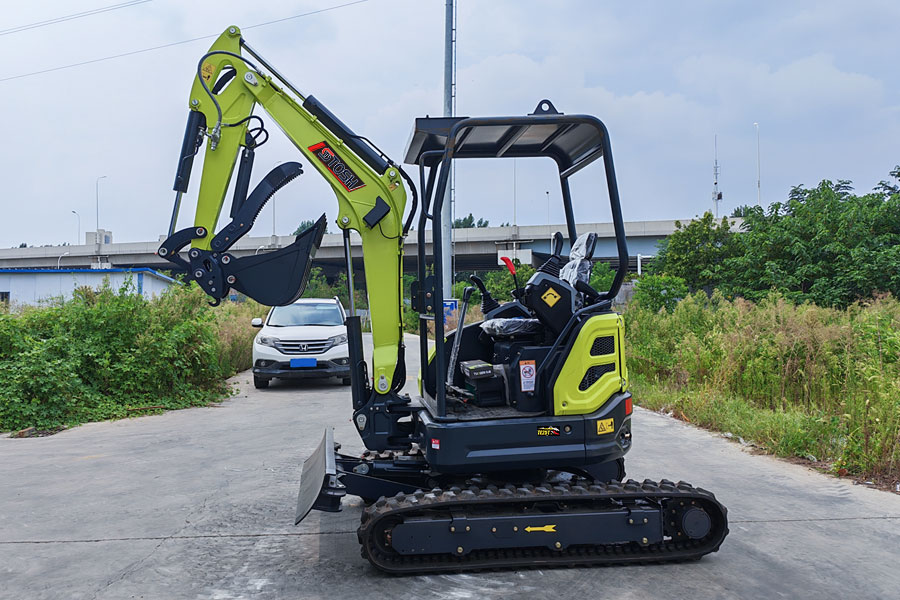

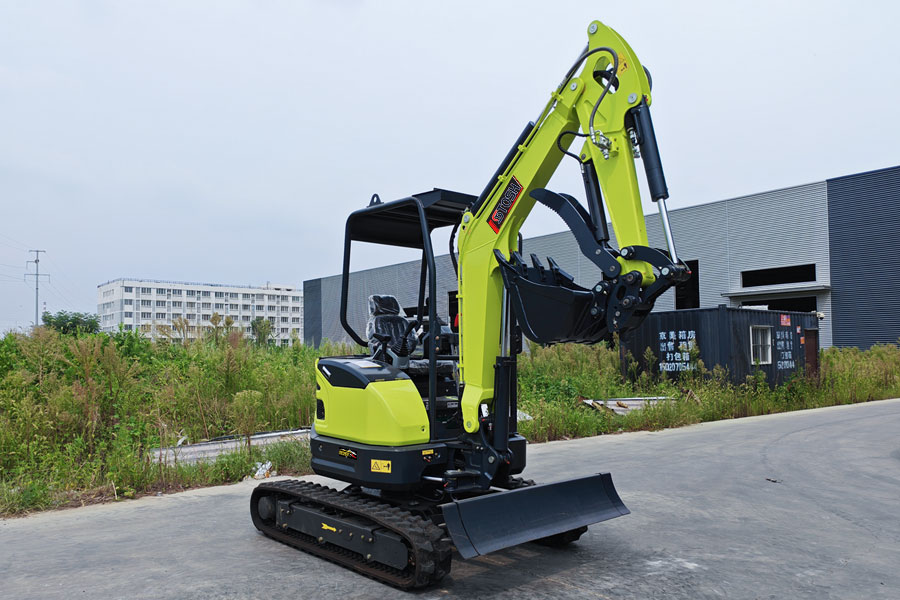

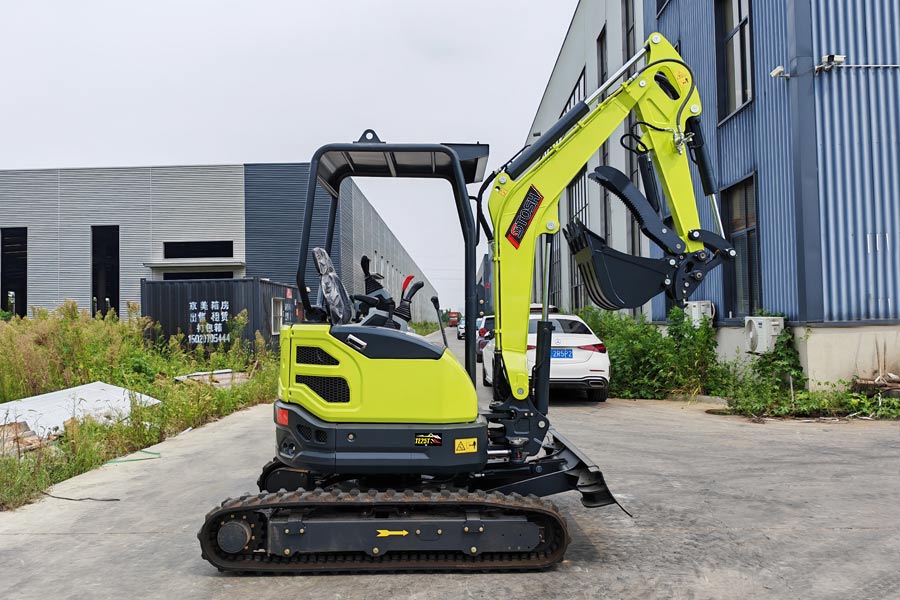

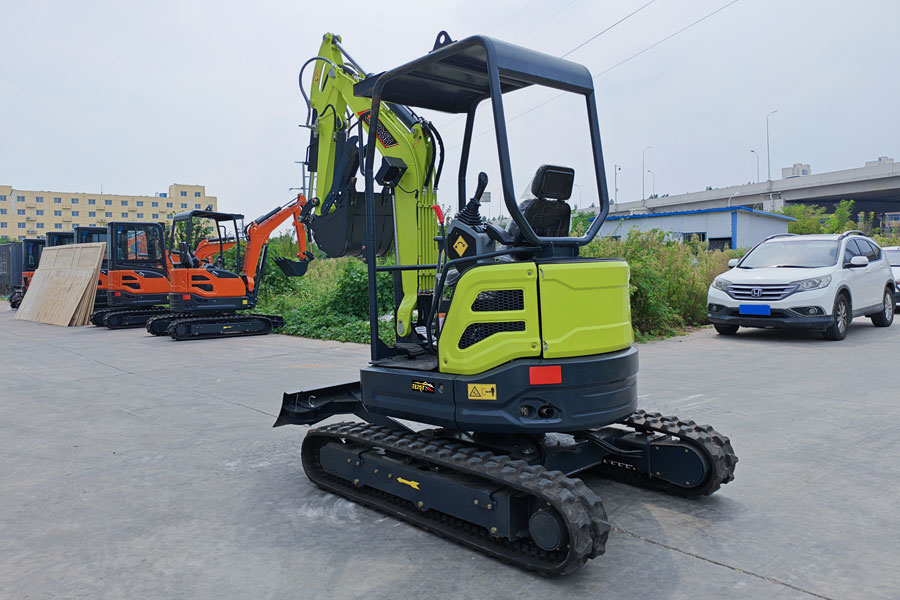

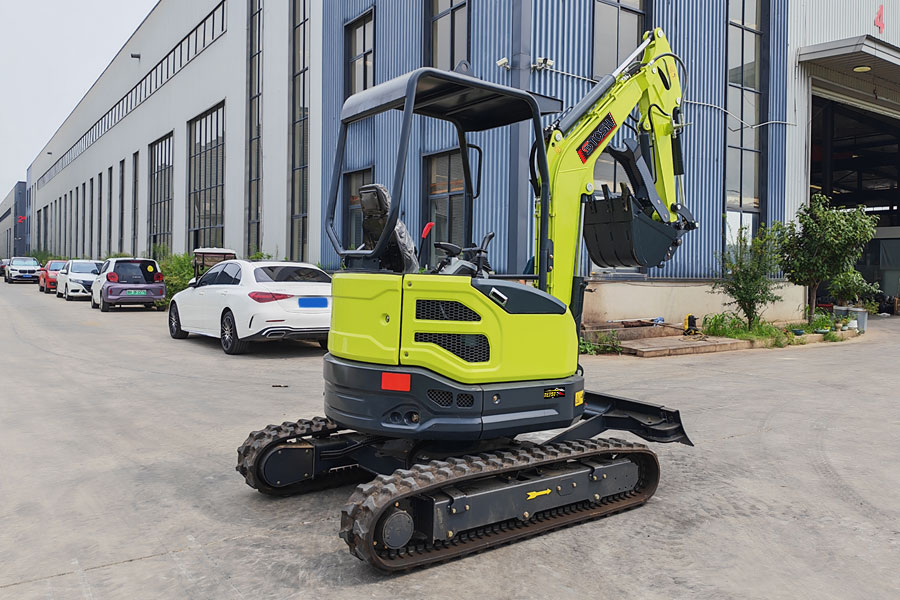

TE25T Canopy 2.5-Ton Mini Excavator
The TE25T Canopy mini excavator features a 70 L/min variable piston pump, 24.5 MPa hydraulics and 670 mm tail swing radius. With a Yanmar diesel engine, adjustable undercarriage and 2.41 m digging depth, it suits utility trenching and compact construction sites.
Technical Specifications
| Model | TE25T Canopy |
| Operating Weight | 2,500 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 1,300–1,500 mm |
| Max. Digging Depth | 2,410 mm |
| Bucket Capacity | 0.068 m³ |
| Hydraulic System | 24.5 MPa / 70 L/min |
| Engine | Yanmar 380F Diesel |
View Full Specifications▾
| Overall Dimensions | 4,100 × 2,440 mm (L × H) |
| Tail Swing Radius | 670 mm |
| Max. Digging Reach | 4,400 mm |
| Max. Dumping Height | 2,880 mm |
| Travel Speed | 2.0 / 3.8 km/h |
| Bucket Digging Force | 20 kN |
| Arm Digging Force | 13.5 kN |
| Track Length | 1,860 mm |
| Ground Pressure | 26.5 kPa |
| Boom Swing Angle | Left 65° / Right 50° |
Equipment & Engine Options
Machine Configuration: Open canopy, adjustable rubber tracks, variable piston pump, load-sensitive hydraulic valve, two-speed piston travel motors, offset boom, 515 mm digging bucket and front dozer blade.
Engine & Attachments: Yanmar 380F three-cylinder water-cooled diesel (15.2 kW). Contact us to confirm emissions documentation, available attachments and auxiliary hydraulic flow requirements.
Get a TE25T Canopy Mini Excavator Quote
Request TE25T Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about hydraulic attachment and equipment options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Variable Piston Hydraulics: The 70 L/min pump and 24.5 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
2. Compact Tail Swing: A 670 mm tail swing radius and adjustable 1,300–1,500 mm chassis support positioning in restricted work areas.
3. Extended Working Reach: A 2.41 m digging depth and 2.88 m dumping height support excavation and material handling.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Urban Construction: Excavation and site preparation around space-limited work areas.
Landscaping: Ground preparation, drainage channels and earthmoving.
Note: Confirm engine emissions documentation, canopy protection, auxiliary hydraulic specifications, attachment compatibility and shipping dimensions before ordering.
