TE20T Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 2000Kg
Bucket capacity: 0.04cbm
Rated power: 11.8Kw
Product Details

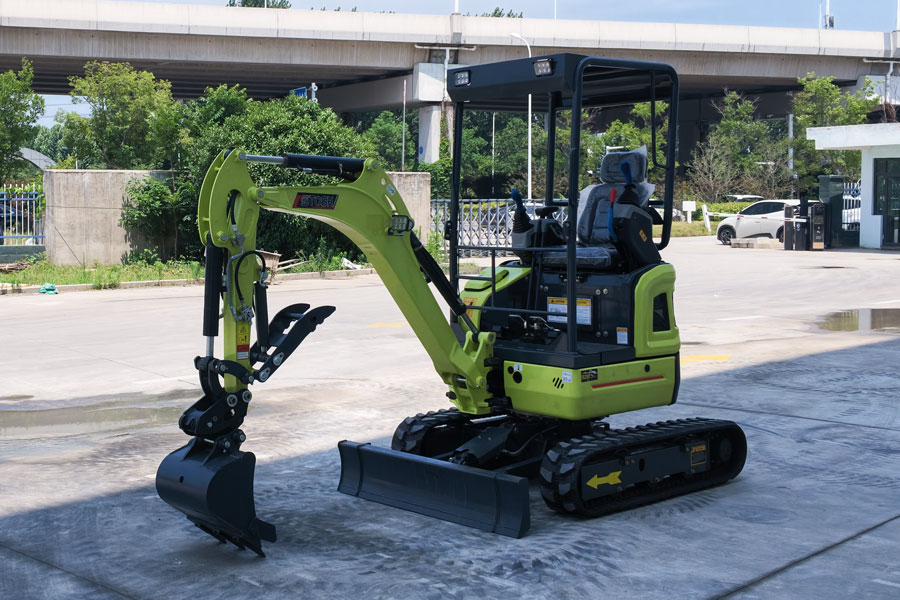

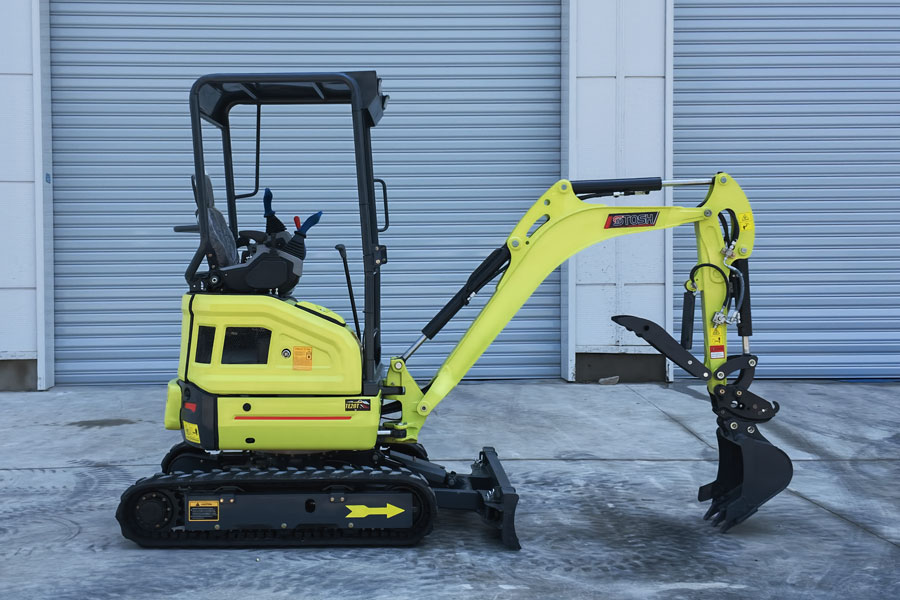

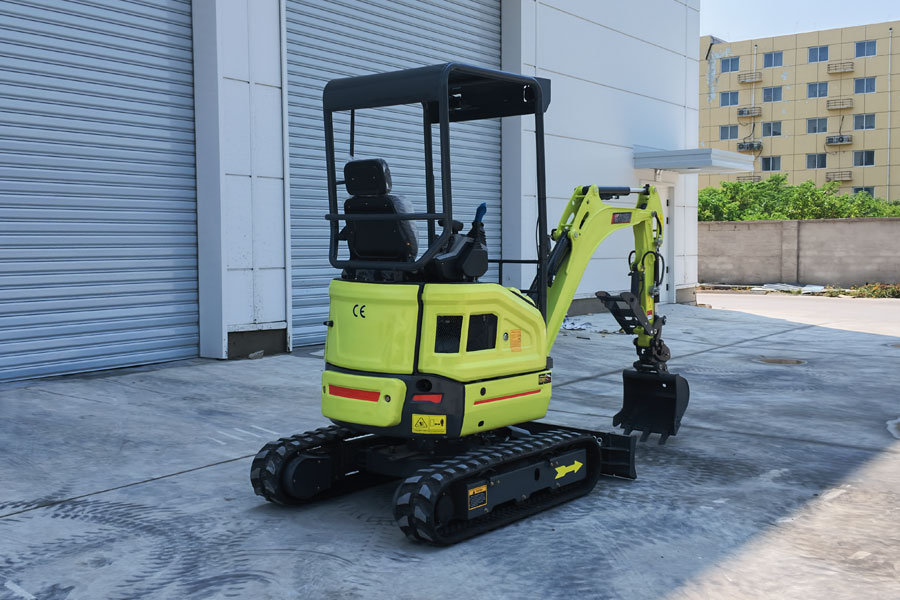

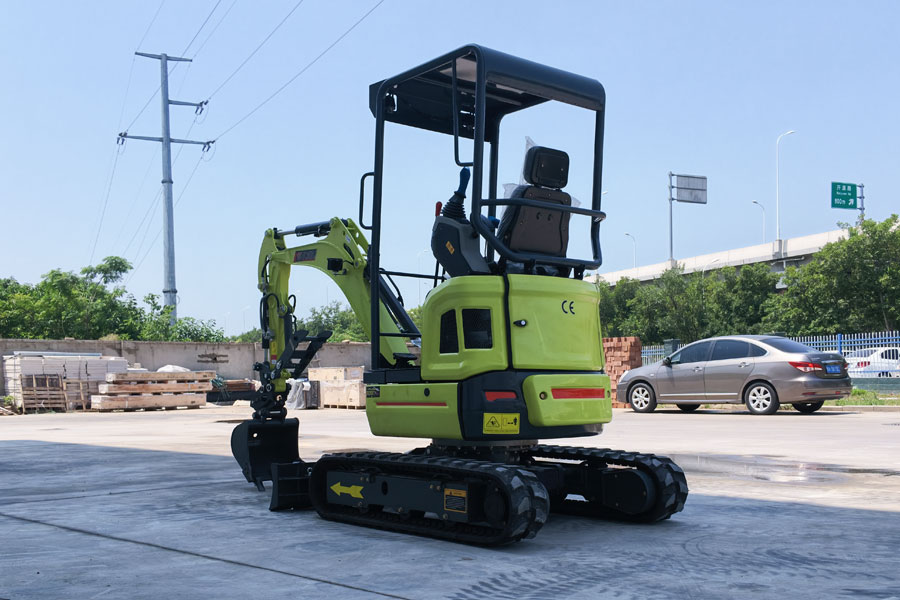

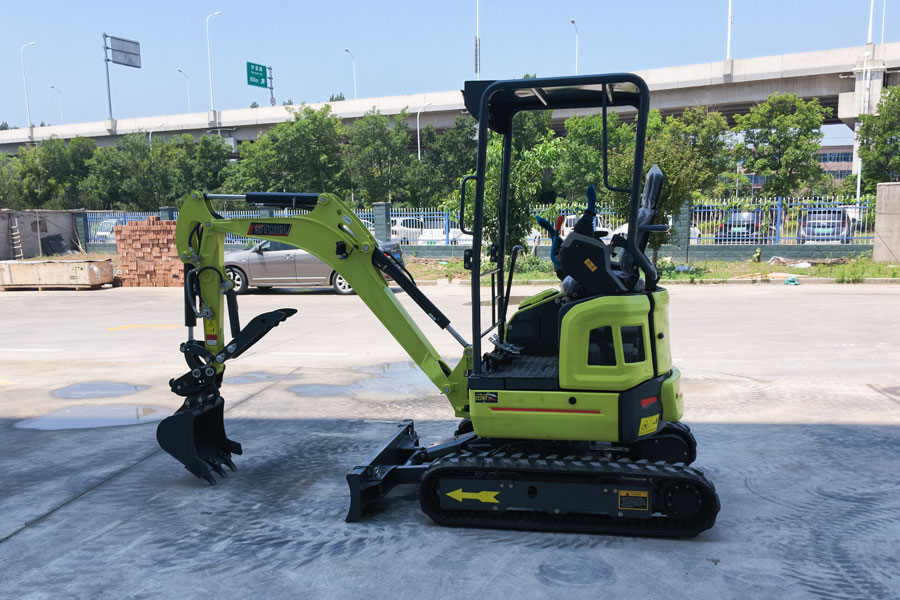

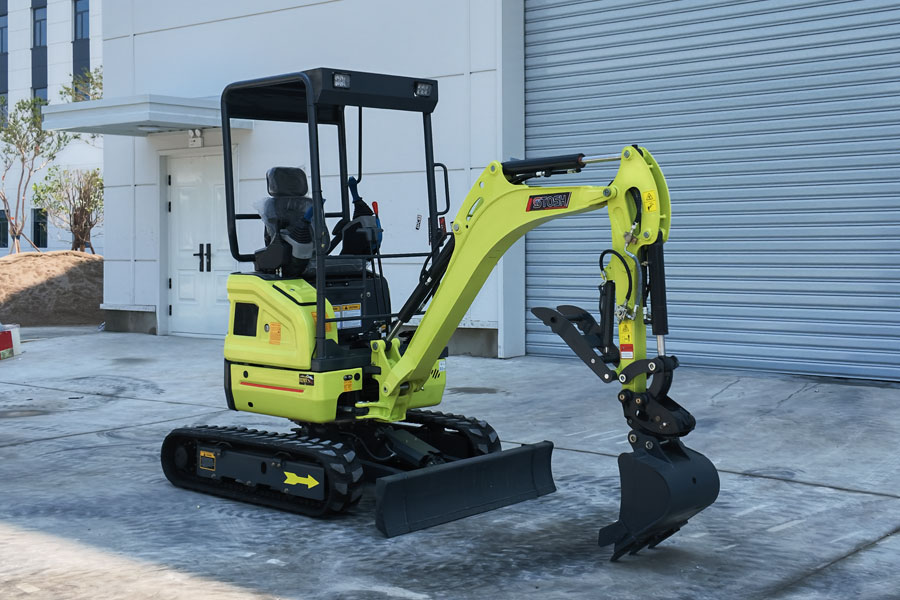

TE20T Canopy 2-Ton Mini Excavator
The TE20T Canopy mini excavator features a 64 L/min variable piston pump, 23 MPa hydraulics and 990–1,300 mm retractable undercarriage. With a Kubota D902 diesel engine and 2.27 m digging depth, it suits utility trenching, landscaping and restricted-access construction.
Technical Specifications
| Model | TE20T Canopy |
| Operating Weight | 2,000 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 990–1,300 mm |
| Max. Digging Depth | 2,270 mm |
| Bucket Capacity | 0.04 m³ |
| Hydraulic System | 23 MPa / 64 L/min |
| Engine | Kubota D902 Diesel |
View Full Specifications▾
| Overall Dimensions | 3,600 × 2,450 mm (L × H) |
| Track Length | 1,595 mm |
| Max. Digging Reach | 3,910 mm |
| Max. Dumping Height | 2,480 mm |
| Travel Speed | 2.2 / 4.5 km/h |
| Bucket Digging Force | 16 kN |
| Arm Digging Force | 9.5 kN |
| Hydraulic Pump | Variable Piston Pump |
| Rubber Track Width | 230 mm |
| Boom Swing Angle | Left 62° / Right 53° |
Equipment & Engine Options
Machine Configuration: Open canopy, retractable rubber tracks, variable piston pump, load-sensitive valve, two-speed piston travel motors, offset boom, 485 mm digging bucket and front dozer blade.
Engine & Attachments: Kubota D902 three-cylinder water-cooled diesel (11.8 kW). Contact us to confirm engine emissions documentation and attachment compatibility, including auxiliary hydraulic flow requirements.
Get a TE20T Canopy Mini Excavator Quote
Request TE20T Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about suitable hydraulic attachments and equipment options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Variable Piston Hydraulics: The 64 L/min pump and 23 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
2. Sub-1-Meter Retractable Chassis: Adjust the track width between 990 mm and 1,300 mm to accommodate different site access and working conditions.
3. Extended Working Range: A 2.27 m digging depth and 2.48 m dumping height support trench excavation and material handling.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Landscaping: Garden excavation and narrow-access ground preparation.
Small Construction: Foundation preparation, material loading and compact earthmoving.
Note: Confirm engine emissions documentation, canopy protection, auxiliary hydraulic specifications, attachment compatibility and transport dimensions before ordering.
