TE20 Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 2000Kg
Bucket capacity: 0.04cbm
Rated power: 11.2/11.8Kw
Product Details

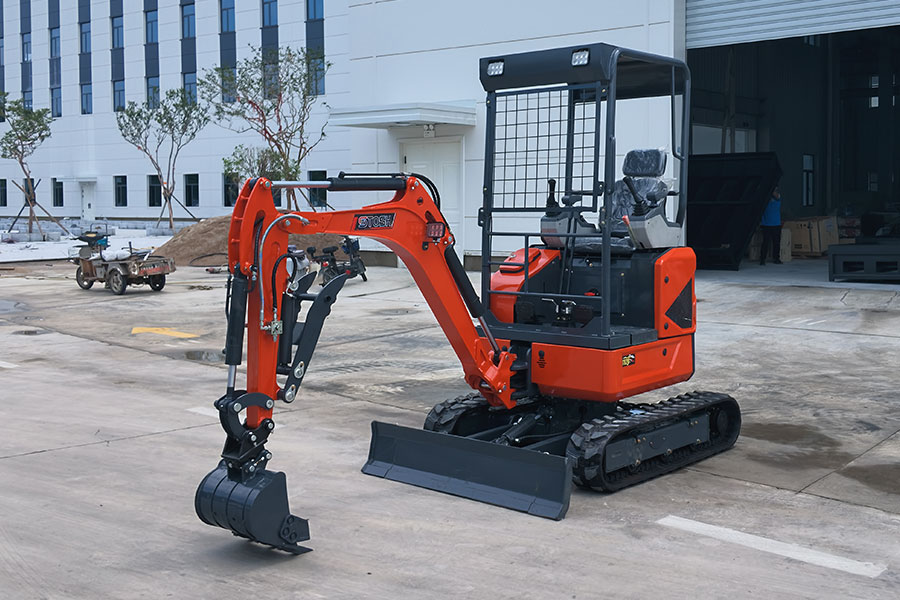

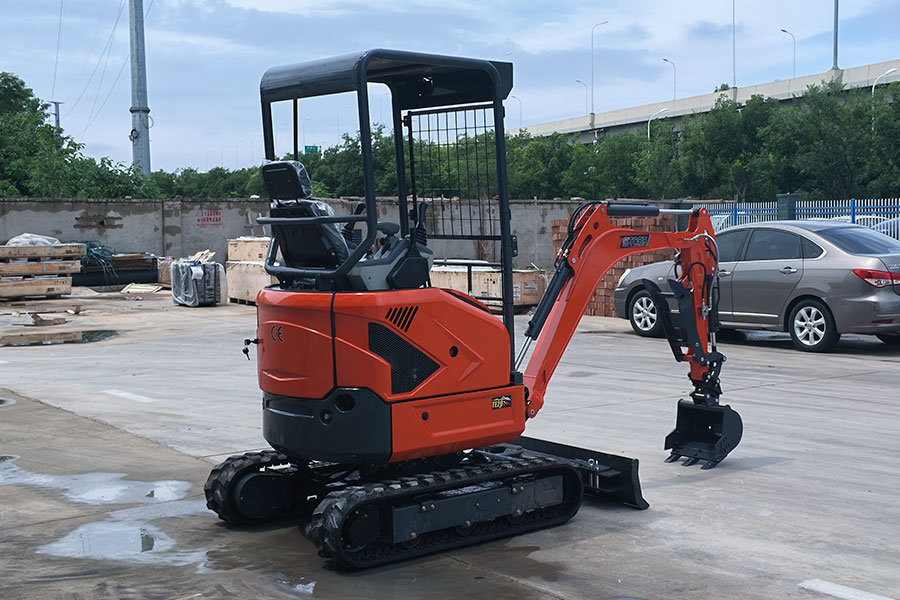

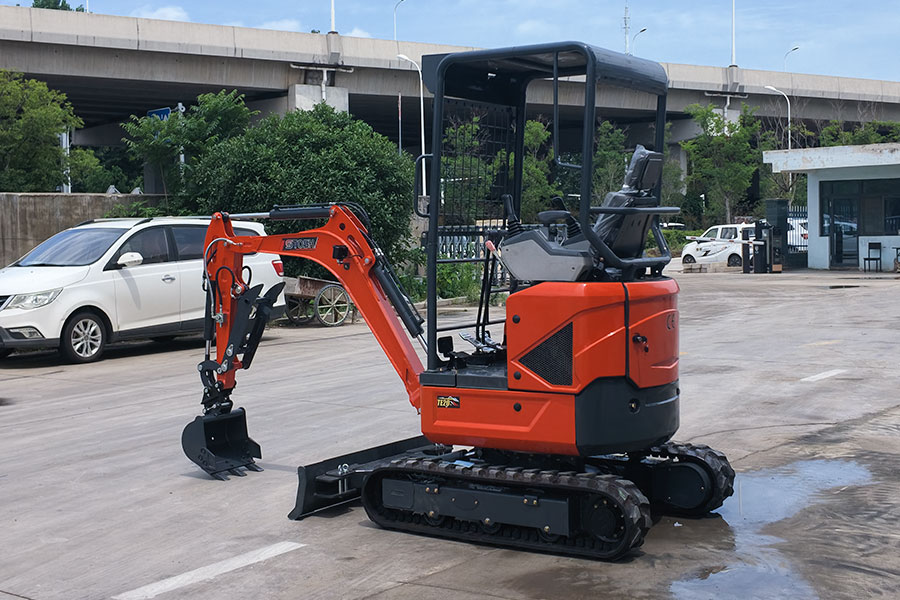

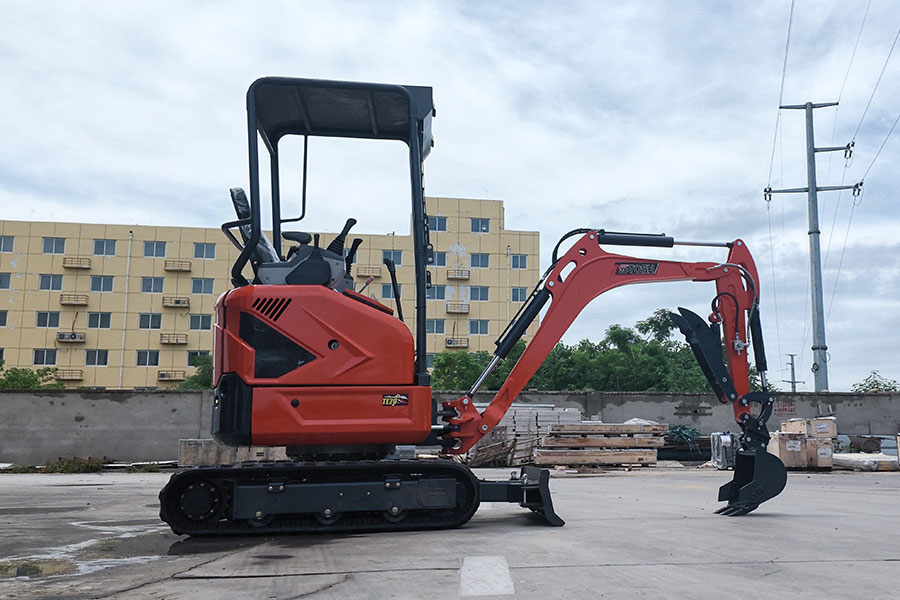

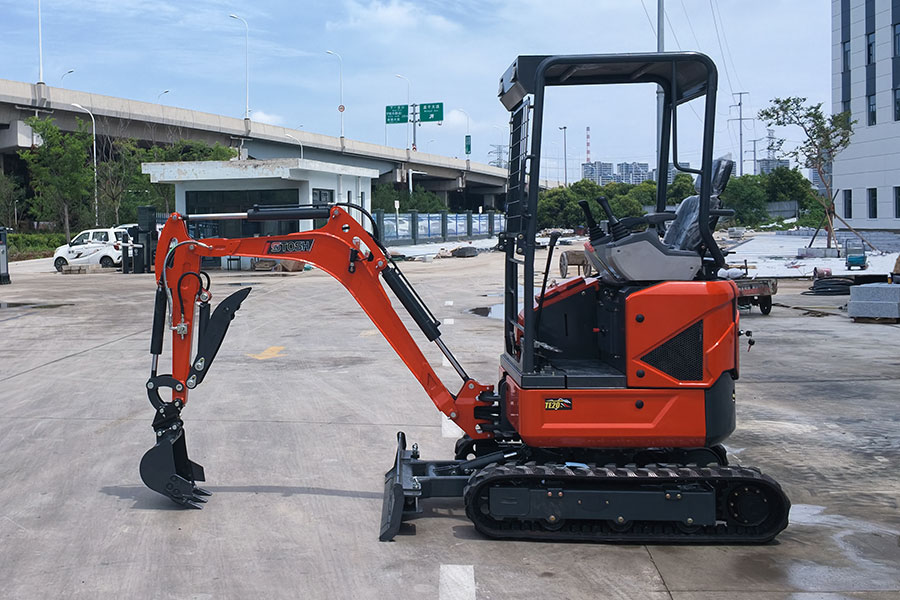

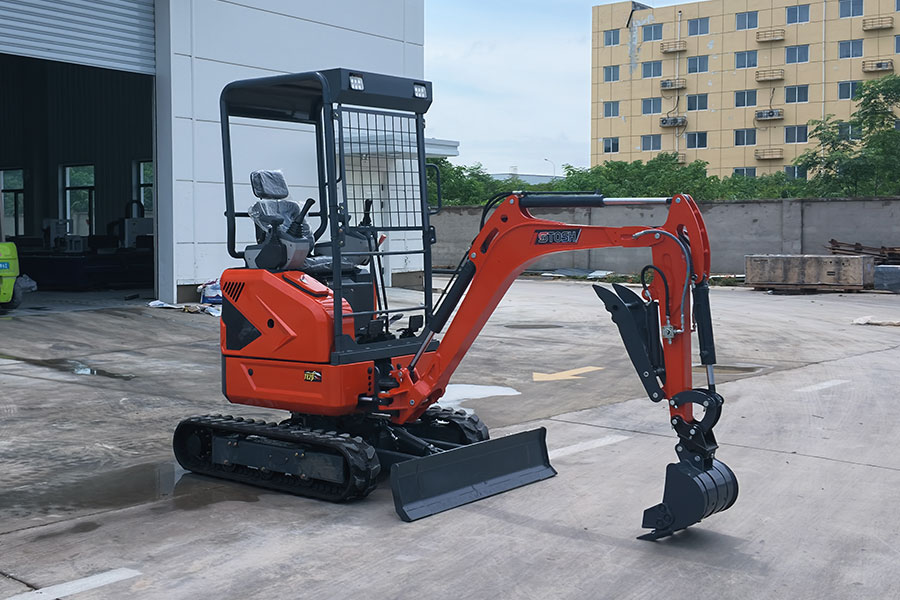

TE20 Canopy 2-Ton Mini Excavator
The TE20 Canopy mini excavator combines a 2,000 kg operating weight, 1,020–1,270 mm retractable undercarriage and 2.2 m digging depth. With two-speed travel and Kubota or Yanmar diesel engine options, it suits utility trenching, landscaping and restricted-access construction.
Technical Specifications
| Model | TE20 Canopy |
| Operating Weight | 2,000 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 1,020–1,270 mm |
| Max. Digging Depth | 2,200 mm |
| Bucket Capacity | 0.04 m³ |
| Travel Speed | 2.2 / 4.3 km/h |
| Engine Options | Kubota D902 / Yanmar 374F |
View Full Specifications▾
| Overall Length | 3,350 mm |
| Track Length | 1,510 mm |
| Ground Digging Reach | 3,650 mm |
| Max. Dumping Height | 1,950 mm |
| Bucket Digging Force | 16 kN |
| Arm Digging Force | 9.5 kN |
| Hydraulic System | 20 MPa / 27.6 L/min |
| Ground Pressure | 29 kPa |
| Rubber Track Width | 230 mm |
| Boom Swing Angle | Left 62.7° / Right 49.7° |
Equipment & Engine Options
Machine Configuration: Open canopy, hydraulically retractable rubber tracks, two-speed travel, load-sensitive hydraulic valve, offset boom, 430 mm digging bucket and front dozer blade.
Engine & Attachments: Kubota D902 diesel (11.8 kW) or Yanmar 374F diesel (11.2 kW), both three-cylinder and water-cooled. Confirm engine availability, emissions documentation and compatible attachments.
Get a TE20 Canopy Mini Excavator Quote
Request TE20 Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units, preferred engine options and compatible attachments.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and application for a tailored offer.
Key Advantages
1. Retractable Undercarriage: Adjust the track width from 1,020 mm to 1,270 mm for narrow access and a wider working stance.
2. Two-Speed Travel: Select 2.2 or 4.3 km/h travel speed to suit jobsite movement requirements.
3. Practical Digging Performance: A 2.2 m digging depth and 16 kN bucket force support trenching and compact earthmoving.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Landscaping: Garden excavation and narrow-access ground preparation.
Small Construction: Light foundation excavation, earthmoving and site maintenance.
Note: Confirm overall height, vertical digging depth, engine emissions documentation, attachment compatibility and shipping dimensions before ordering.
